Weighment, Automation & Integration Platform

Enterprise Weighbridge Software Platform

HKDesk Weighbridge Software combines configurable weighing-indicator communication, gross/tare workflows, UHF RFID unattended operation, multi-camera evidence capture, PLC position interlocks, and customer-specific ERP synchronization.

✓ Configurable Serial Stream Parser✓ UHF RFID Unattended Mode✓ Multi-Camera Evidence✓ SAP REST API Connector
Schedule Live Software Demo View Downloads
HKDesk Weighment Console
Verified Active

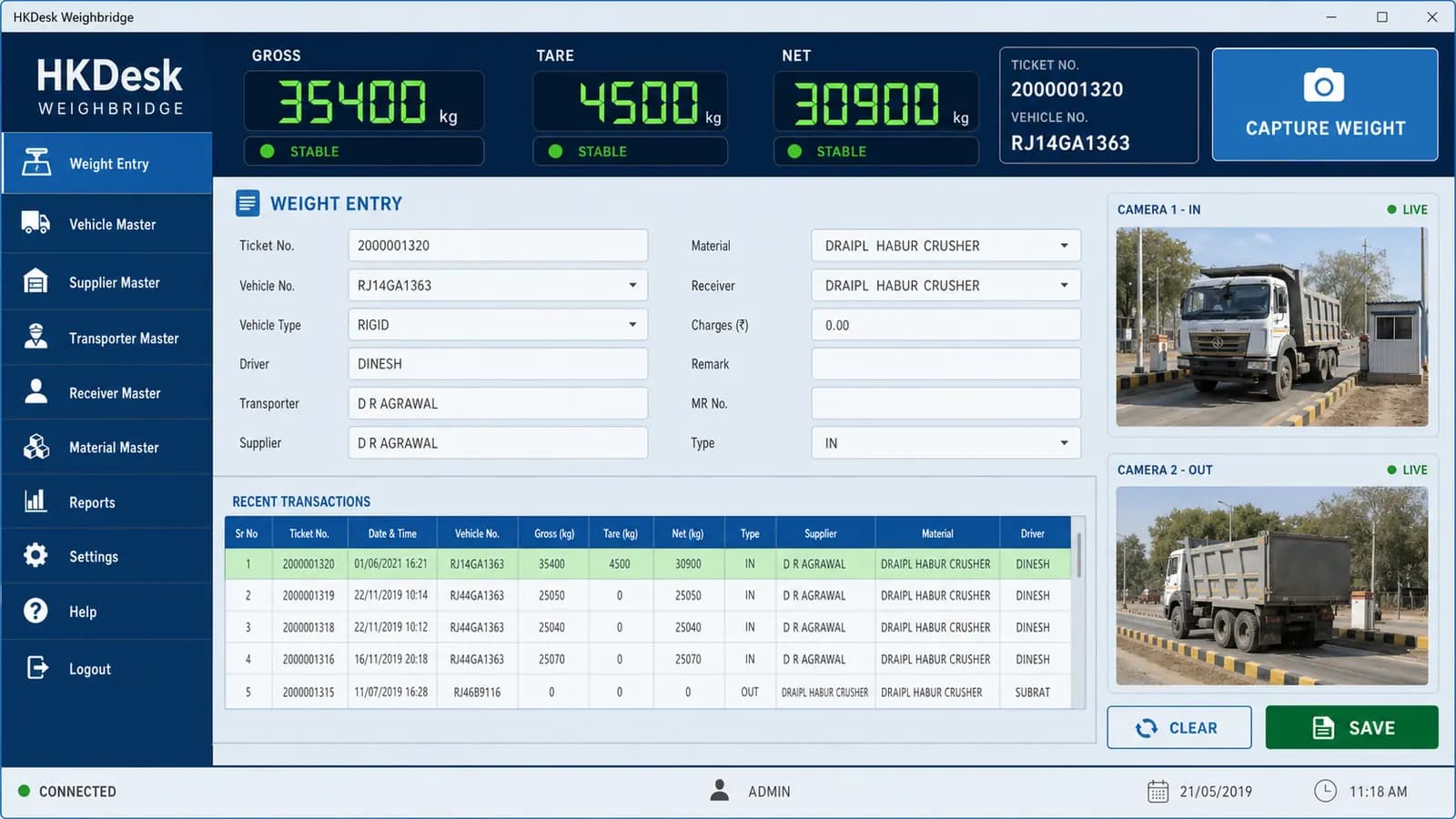

HKDesk weighbridge software showing stable gross, tare, net weight and camera evidence
Indicator Reading • RFID Automation • Multi-Camera Evidence
Verified Modules

Explore Weighbridge Solutions

Unmanned Weighbridge

UHF RFID, PLC vehicle position interlocks, traffic lights, and boom barrier automation.

Learn More

CCTV Camera Integration

Captures overview camera snapshots (gross/tare stages) linked to weighment records.

Learn More

Server-Client Network

Two-way incremental database synchronization between client PCs and central SQL Server.

Learn More

ANPR / Axle Weighing

Hikvision ANPR camera integration with license plate event reading and axle weighing modes.

Learn More
Technical Architecture

System Specifications & Compatibility

Technical Specification Table

Operating System:Windows 10 / 11, Windows Server 2016 - 2025 (32-bit & 64-bit)
Indicator Interface:COM/Serial Port (RS-232, RS-485), ASCII Protocols, Modbus RTU/TCP
Baud Rates:600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 up to 256000
Stream Parsing:Start/Stop chars, fixed start pos, length, decimal pos, mask, polling interval
Database Engine:Microsoft SQL Server (Local client DB + Central Server DB sync)
Camera Capture:Supported IP cameras, up to 4 overview views, and optional ANPR workflows
RFID Integration:Fixed UHF Readers (Ethernet/Serial), 8-40s timeout, duplicate entry protection
ERP Connector:REST/HTTP API for SAP invoice import & transaction posting

Verified Capabilities

Our application includes core features verified through production code:

  • Configurable Serial Stream Parser (RS-232, RS-485, Modbus RTU/TCP)
  • Baud Rates: 600 up to 256,000 with Custom Parity & Stop Bits
  • Dual-Entry Gross/Tare, Single Gross & Vehicle Master Tare Modes
  • UHF Long-Range RFID Automated First & Second Weighment Selection
  • PLC Positioning Sensor Interlocks & Empty-Scale Interlocking
  • Multi-Camera Evidence Capture for Gross and Tare Weighments
  • Local SQL Database Queue with Central SQL Server Two-Way Sync
  • Customer-Specific SAP REST/HTTP API Integration
Got Questions?

Frequently Asked Questions

Does HKDesk Weighbridge Software work with our weighing indicator?

Yes! HKDesk features a configurable serial-stream parser that connects with serial-output weighing indicators from multiple manufacturers (RS-232, RS-485, ASCII, Modbus). You can configure start/stop characters, byte positions, baud rates (up to 256,000), and parity settings directly in the software.

How does the software handle internet or network drops?

HKDesk uses a local weighbridge database architecture. If the central server connection is lost, weighment tickets continue to save locally on the client PC. As soon as the network connection returns, two-way incremental synchronization automatically uploads pending tickets to the central SQL Server.

How does empty-scale interlocking prevent duplicate weighments?

After a weighment transaction is saved, the application marks the bridge occupied. It requires the live weight to return to or below the empty threshold (e.g. 300-500 kg) for several consecutive cycles before accepting the next RFID tag or vehicle entry.

Can we integrate weighbridge transactions into SAP?

Yes. HKDesk includes verified REST/HTTP integration modules for SAP that import employee master data, transporter lists, sales/purchase invoices, and automatically post gross, tare, and net weights upon ticket completion.

Ready to Automate Your Weighbridge Operations?

Contact our engineering team for a customized setup demo or custom ERP connector quote.
